GRP Poles Manufacturer in India
Easy-to-install, low-maintenance lighting solutions
Aeron Composite is a trusted partner in infrastructure projects, supplying GRP poles in accordance with EN 40-7 and ASTM D4923. A distinguished GRP lighting pole manufacturer, we produce poles with multiple installation types, localized wind resistance, and zero-rust performance.
GRP lighting poles are cost-effective and safe alternatives to metal poles. They are easier to install and maintain, are naturally non-conductive, and have a long operational lifespan. Lower total cost of ownership, be regulatory compliant, and onboard a Greener lighting system solution with our FRP lighting poles.

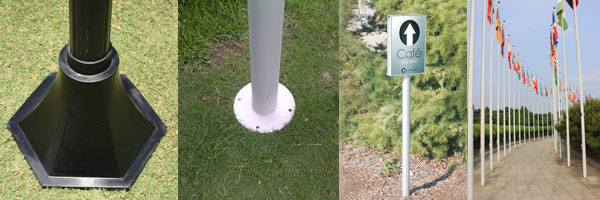

GRP Poles Installation
Our GRP poles support both prevalent types of pole installation processes.
- Root mounting: Direct burial mounting where the pole can be inserted into the hole dug without the need for a sophisticated or special base plate. The hole is backfilled with soil or concrete mix for stability.
- Flange mounting: Preferred in urban settings such as parking lots and highways where root mounting is not feasible. The GRP lighting pole is affixed to a concrete pad or steel base and secured with anchor or J-bolts for stability.
GRP Poles Product Details
We manufacture FRP lighting poles in various standard configurations. The following are key details at a glance. We also produce customized FRP/GRP lighting poles for diverse applications.
| Length (m) | Top Dia (mm) | Bottom Dia (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| 3 | 76 | 126 | 6-7 | 12.30 |
| 4 | 76 | 143 | 6-7 | 16.50 |
| 5 | 76 | 160 | 6-7 | 25.10 |
| 6 | 76 | 176 | 6-7 | 33.50 |
| 7 | 76 | 193 | 6-7 | 40.70 |
| 8 | 76 | 210 | 6-7 | 46.45 |
| 9 | 76 | 227 | 6-7 | 52.20 |
| 10 | 76 | 243 | 6-7 | 60.50 |

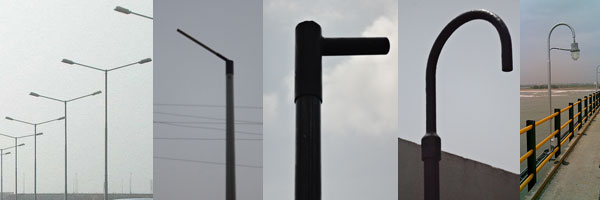

Product Shape
Product Accessories
- Junction box
- Anchor /J-bolts
- Mounting base plates
- Access door
- Brackets/Arms
- Pole top cap
Technical Specifications
Additional details with respect to our GRP poles—from tolerance details to compressive strength and more.
| Particulars | Details |
|---|---|
| Material | Fiberglass |
| Resin Options | Polyester, Vinylesters, Epoxy |
| Manufacturing Process | Pultrusion, Filament winding |
| Glass Content | Up to 70% |
| Height Range | 3 m - 10 m |
| Pole Thickness | 6 mm - 7 mm |
| Tolerance | ± 15 mm (length), ± 0.5 mm (thickness) |
| Flexural Strength | 250 (±50) MPa (ASTM D790) |
| Tensile Strength | 300 (±50) MPa (ASTM D638) |
| Compressive Strength | 160 (±50) MPa (ASTM D695) |
| Color | Yellow, Green, Gray (custom colors available) |
| Corrosion Resistance | Excellent (ASTM C581) (ASTM D543) |
| Wind Resistance | Up to 155 km/h (max deflection 9%) |
| Electrical Properties | Non-conductive (bonding not required) |
| Temperature Resistance | - 50°C - +150°C (varies by resin type) |
| Fire Retardance | In line with ASTM E 84 Class A |
| Expected Service Life | 25+ years |
Our GRP Poles Manufacturing Process
We manufacture our GRP lighting pole and FRP lighting poles using the following processes.
- Pultrusion: This is our primary manufacturing process for poles up to 6 meters in length. The process begins with feeding fiberglass rovings into a resin bath for impregnation, after which these fibers are pressed into shape and heated.
- Filament Winding: This production process is reserved for GRP poles of 7 meters and above. Resin-soaked fibers are uniformly wound around a rotating mandrel at constant speeds and at controlled angles to produce uniform pole profiles.
GRP Poles Testing
We test our lighting poles in accordance with, and for the following:
- ASTM D4923 (guidelines for reinforced thermosetting plastic)
- ASTM D2584 (ignition loss of cured reinforced resins)
- ASTM D3917 (dimensional tolerance for reinforced thermosetting plastic)
- ASTM D696 (rate of plastic expansion with change in temperature)
- Barcol hardness and acoustic emission tests
- Ultraviolet (UV), thermography, and radiography testing
Why Choose Aeron Composite for GRP Poles
Aeron Composite—a leading provider of FRP and GRP products in India—has been functioning for more than a decade. We are in the business of providing industrial fiberglass pultruded products that achieve product-application fit.
Key reasons to partner with us:
- Advanced engineering: DSIR-recognized in-house R&D facility, industry-vetted CAD/CAM software, and skilled design team that simulates and iterates quickly, reducing time-to-market.
- Raw material access: International and domestic fiberglass sourcing and domestic resin sourcing to maintain buffer stocks at all times, insure against stock-outs, and ensure just-in-time delivery.
- Integrated manufacturing: From designing and simulating to production and secondary operations, everything is carried out in a single ISO 9001-certified facility.
- Scalable production: A trained workforce and multiple modular production lines to ensure production at industrial volumes and deliver increased units with lower turnaround times.
- Flexible material options: Range of IS 6746-compatible resins and different qualities of fiberglass to meet various technical and budgetary needs.
- Full product lifecycle coverage: Supporting procurement teams with conceptualization, design, tooling, and advisory services.
- Environmental awareness: Incorporating up to 5% of pre-consumer recycled content along with recycling support for FRP products nearing end of life. Alignment with QHSE and 3R requirements that feed into the client’s ESG goals.
- Packaging: Freight-compatible, destination-informed packaging and labelling to ensure product integrity and compliance with local laws.
- Supply & Export: Supplying GRP poles pan-India and exporting to 30+ countries. Our GRP poles are in use in the US, Canada, Mexico, the UK, France, Italy, Germany, Spain, Portugal, Saudi Arabia, the UAE, Qatar, Bahrain, Japan, Australia, New Zealand, and others.
Case Study
Aeron Composite's GRP/FRP lighting poles installed in a public park in Gujarat reduced maintenance frequency by 63% and maintenance costs by 89%.
Ready to Discuss Your Requirements?
Introducing or switching to GRP poles for lighting can be challenging. We are here to help. Let us answer your concerns, resolve your queries, and establish how GRP/FRP poles meet your lighting system needs.
GRP Poles Application and Use
Our poles are routinely used as:
- Advertisement poles
- Street lighting poles
- Highway lighting poles
- Park lighting poles
- Traffic light poles
- Airport lighting poles
- Parking area lighting poles
- Solar lighting poles
- Flag masts
- Industrial lighting poles
Industries We Serve
We are among the leading FRP lighting pole manufacturers, serving the following industries.
- Marine
- Oil & Gas
- Petroleum & Chemical
- Electrical & Telecommunication
- Machine
- Paper & Pulp
- Energy & Power
- Wastewater treatment
- Construction & Infrastructure
FAQs
Why choose GRP poles over metal poles for lighting systems?
GRP poles, made from a composite of fibreglass and resin, are as strong as steel but only half as heavy. This makes transportation, installation, and maintenance easy and cost-effective. Furthermore, GRP poles don’t conduct electricity.
Do you manufacture seamless poles or modular GRP poles?
We primarily manufacture seamless GRP poles made from continuous fiberglass rovings. Modular GRP poles are currently a work in progress.
Do you also manufacture PVC poles or only GRP poles?
We currently only manufacture GRP/FRP poles because of better strength-to-weight ratio and superior fire resistance capabilities.
Is Aeron Composite only a GRP poles manufacturer?
No. Aeron Composite also manufactures fiberglass moulded gratings, GRP pultruded gratings, FRP cable trays, and a wide range of FRP profiles. We also manufacture FRP rebars and FRP rods for fiber optic cables.
What’s the MOQ for GRP poles?
The MOQ for GRP poles varies, based on resin matrix, glass-fiber grade, and Incoterms selected. For an MOQ tailored to your project, consider reaching out to us at the earliest.
Let’s Move Your Project Forward!
We are here to help you transition from metal to GRP poles. Reach out to us with your design, volume, and compliance requirements, and get a quote tailored to your project in 7 working days. Avail 1-1 support, 360° advisory, and payment terms that work for you.
